Klang Legio#

Ridiculous mid-range percussion voice based on Basimilus

Overview#

Klang takes inspiration from Kick Legio and applies it to Basimilus's additive algorithm to create a wild mid-range percussion voice capable of wacky toms, big zaps, and harmonically-rich impacts of any flavor. And not only is it a great part of the Legio drum kit, it's also an excellent bass and lead voice when fed a pitch sequence.

  • Type: Mid-range percussion voice
  • Size: 6 HP
  • Depth: 1.5 inches
  • Power: 2x5 Eurorack
  • +12 V: 140mA
  • -12 V: 22mA

Etymology#

Klang -- from English: “KLANG”

Legio -- from Latin: “legion, army”

“LOUD NOISES”

Color code#

On boot, the Legio's LEDs will shine with this color pattern to indicate that it is running the current Bitcrush firmware:

A illustration of two lights: red and purple.

Power#

Power connector

To power your Noise Engineering module, turn off your case. Plug one end of your ribbon cable into your power board so that the red stripe on the ribbon cable is aligned to the side that says -12 V and each pin on the power header is plugged into the connector on the ribbon. Make sure no pins are overhanging the connector! If they are, unplug it and realign.

Line up the red stripe on the ribbon cable so that it matches the white stripe and/or -12 V indication on the board and plug in the connector.

Screw your module into your case before powering on the module. You risk bumping the module's PCB against something metallic and damaging it if it's not properly secured when powered on.

You should be good to go if you followed these instructions. Now go make some noise!

Noise Engineering modules are reverse protected. If you accidentally installed it with the red stripe up, simply remove the power and place it correctly.

A final note. Some modules have other headers -- they may have a different number of pins or may say "not power". In general, unless a manual tells you otherwise, do not connect those to power.

Input & output voltages#

Legio’s CV-modulation inputs expect signals from 0v to +5v.

The Pitch input’s range is -2v to +5v.

The Hit input responds to a rising edge around +1.6v.

The audio inputs are AC coupled and respond to any Eurorack audio signals.

The audio output can reach up to 16v peak-to-peak.

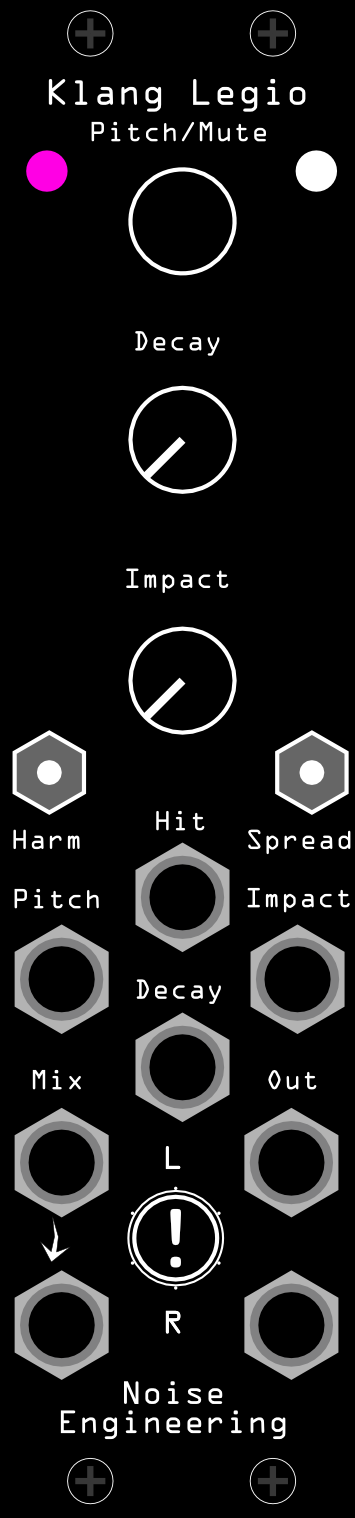

Interface#

explanation

Pitch (encoder+CV input)
Sets the pitch of the voice.
Tap to mute/unmute the voice.
Decay (potentiometer+CV input)
Sets the decay length of the voice.
Impact (potentiometer+CV input)
Shapes the impact of the drum; soft(ish) to the left, hard to the right.
Harm (switch)
Sets the level of the additive oscillators.
Spread (switch)
Sets the pitch relationship of the additive oscillators.
Hit
Triggers the voice.
Mix L/R
Audio inputs. Audio here is mixed with the drum voice and passed through to the outputs. The L jack is normaled to the R jack if R is left unpatched.
Out L/Out R
Audio outputs.

Patch tutorial#

Patch a trigger pattern to the Hit input. Tune the voice to the rest of your patch. Adjust the pots and switches to taste.

For less harmonically rich sounds, set Harm and Spread to minimum, and Impact below noon. Or, get wild and start cranking things up.

Klang makes a great pitched voice: patch in a pitch sequence and try using it as a lead.

Note

If using multiple Legio drum voices, they can be chained together without an external mixer. Just patch the output of one to the input of the next.

However, order matters: Kick will duck all the percussion voices that come before it. For ultimate impact, put Kick at the end of the chain; or, if some drums are more important, put them after Kick so they aren't ducked out of the way.

Signal flow#

A block diagram of the firmware's signal flow.

Warranty#

We will repair or replace (at our discretion) any product that we manufactured for one year after initial purchase as long as we are able to get the parts to do so. This warranty does not apply to normal wear and tear, including art/panel wear, or any products that have been modified, abused, or misused. Our warranty is limited to manufacturing defects.

Warranty repairs/replacements are free. Repairs due to normal wear, user modification, or other damage are charged at an affordable rate. Customers are responsible for the cost of shipping to Noise Engineering technicians for repair.

All returns must be coordinated through Noise Engineering; returns without a Return Authorization will be refused and returned to sender.

For immediate issues with new modules, please contact your dealer for a replacement. Otherwise, please contact us if you think one of your modules needs a repair.

Design Notes#

A while back, we released a module called Basimilus. People seem to like it, but it has a sound to it. When Stephen wrote Kick Legio, he aimed for a different sound. But we love the BIA and Klang is a bit more of a nod to it. Although there's still no shared code with BIA, you may hear some similarities betweem the two, especially in the klanginess of it all.
